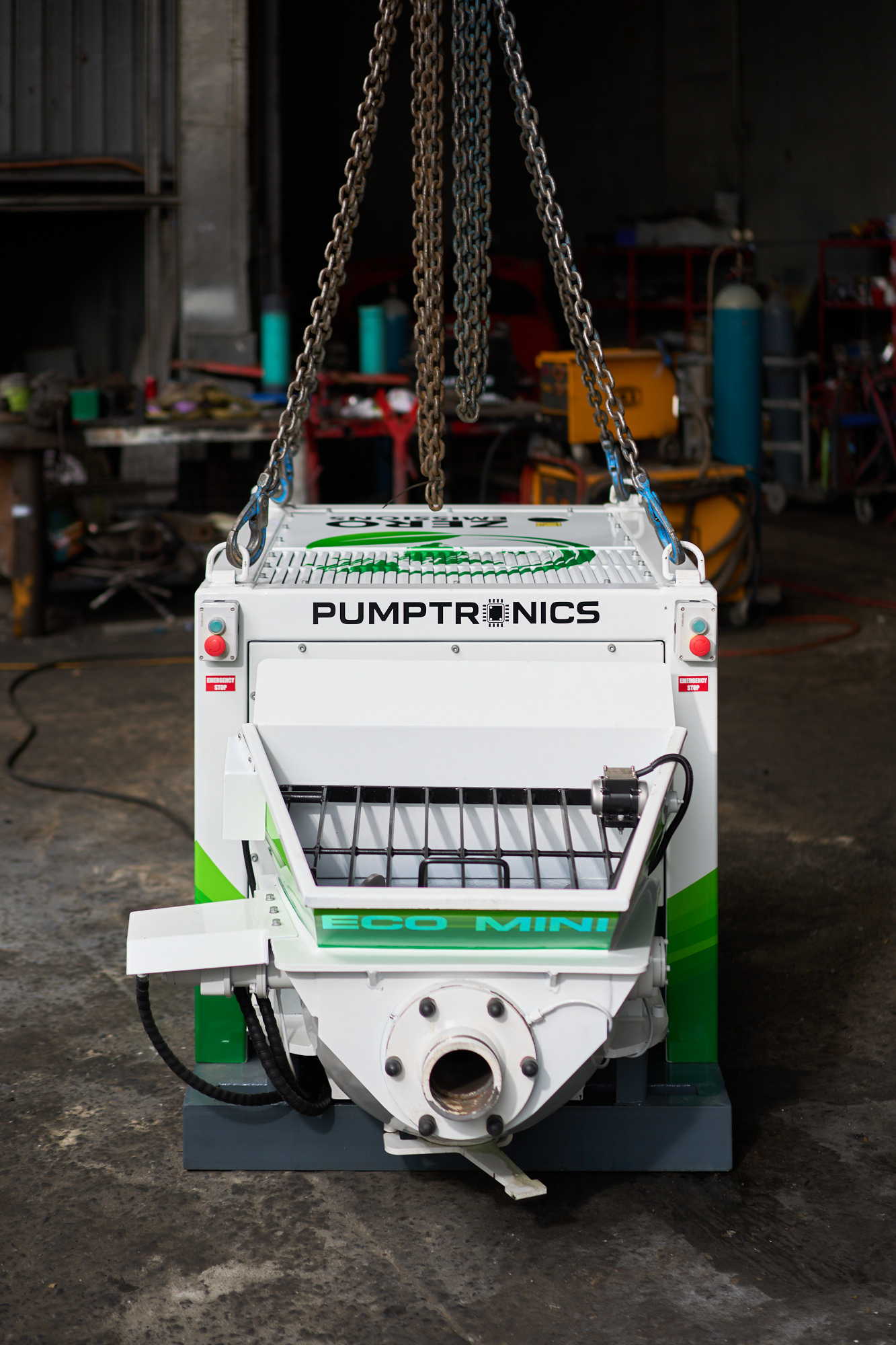

Eco Mini concrete pump hanging from crane chains in the Pumptronics workshop
PUMPTRONICS

Small pour. No pump booking.

Eco Mini is a three phase electric mini concrete pump for the jobs too big for barrows and too small for a full size pump.

Enquire about Eco Mini
9.2 m³/hRated output, up to
70 dBApproximate noise
Site power400 to 415 V, three phase

The gap between the barrow and the boom.

It's not about replacing conventional concrete pumps. It's about stopping small jobs from needing one.

Wheelbarrows

Crew hours, one load at a time.

Eco Mini

Small placements, hard to access areas and intermittent pours.

Full size pump

Still the right call for the big pours.

Sam O'Leary, founder of Pumptronics, in the workshop Sam O'Leary, founder, Pumptronics

Built after a day on the barrows.

Eco Mini came from first hand construction experience. After a placement challenge, concrete had to be moved by kibble and then wheelbarrowed down a stair core.

Sam built Eco Mini so the next small pour wouldn't go the same way. A compact pump that plugs into the power already on site and simplifies the smaller jobs.

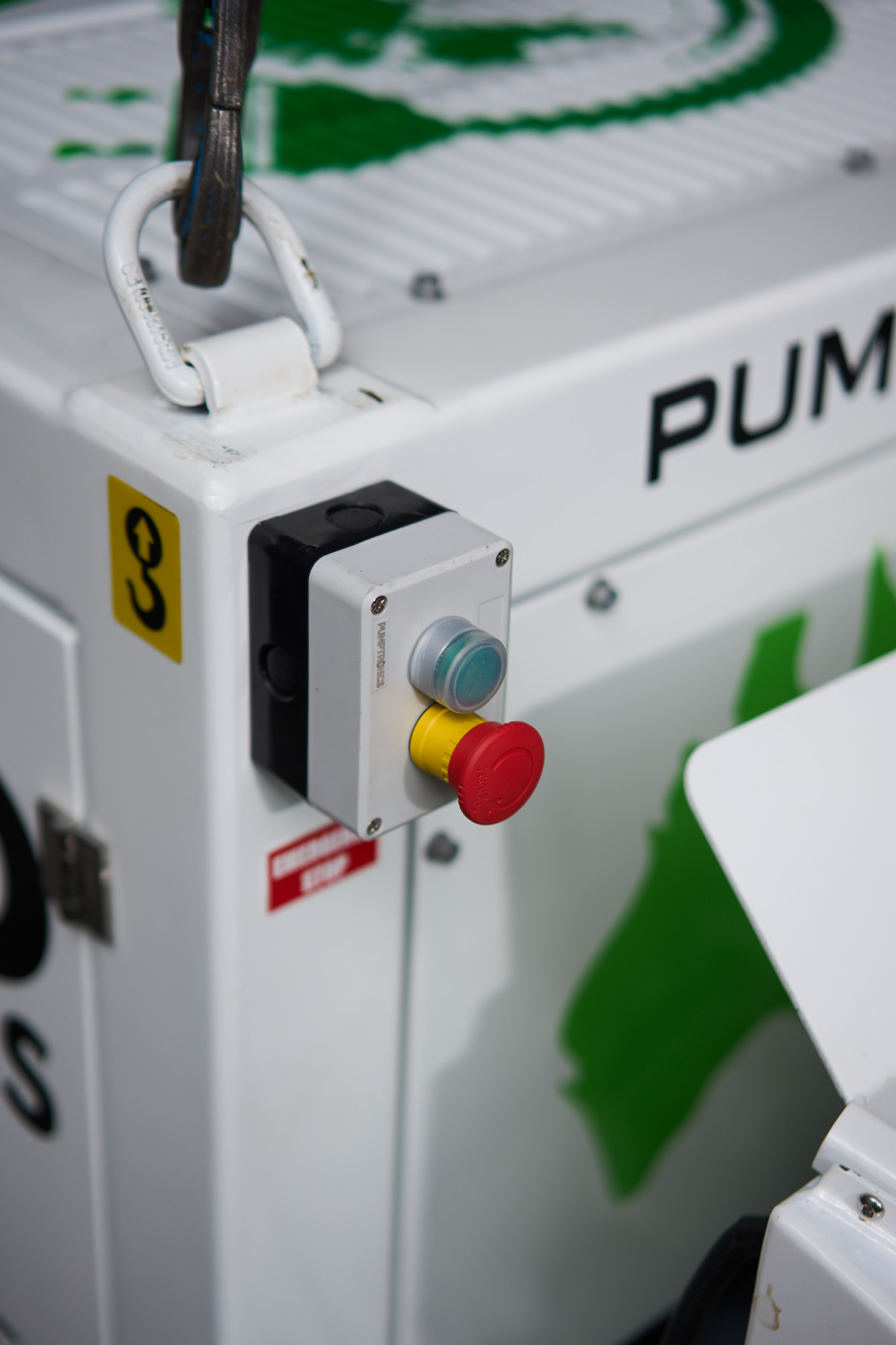

Emergency stop and control box on the side of the Eco Mini

By the numbers.

PUMPTRONICSECO MINI
Rated output, up to9.2m³/h
Rated concrete pressure, up to52bar
Main motor16kW
Machine weight1,046kg
Noise, approximately70dB
Aggregate, up to10mm
Delivery hose, recommended50mm
Electrical supply32A400 to 415 V, three phase, five pin
Ask about Eco Mini

Made for the small stuff on big programs.

For builders, blocklayers, construction contractors and larger sites with small concrete placements, hard to access areas or intermittent pours.

Right sized

A compact pumping option for smaller pours.

Electric

No diesel engine running at the point of use.

Control

Plan small placements around your own workflow, subject to suitable site power.

Site focused

Designed around three phase construction site power.

What's inside.

The pumping end, the hydraulics and the 16 kW main motor, all on one skid.

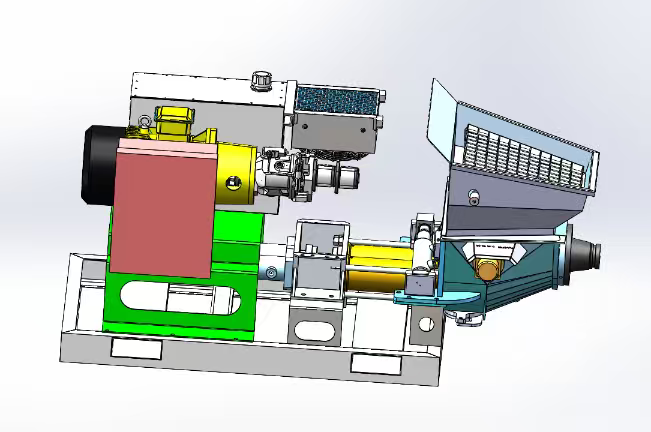

Eco Mini internal layout, side view

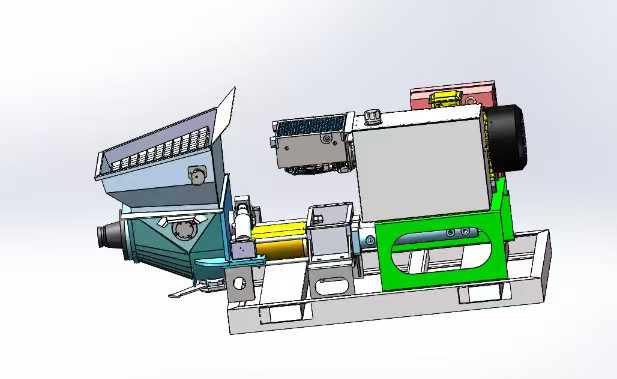

Eco Mini internal layout, hopper side

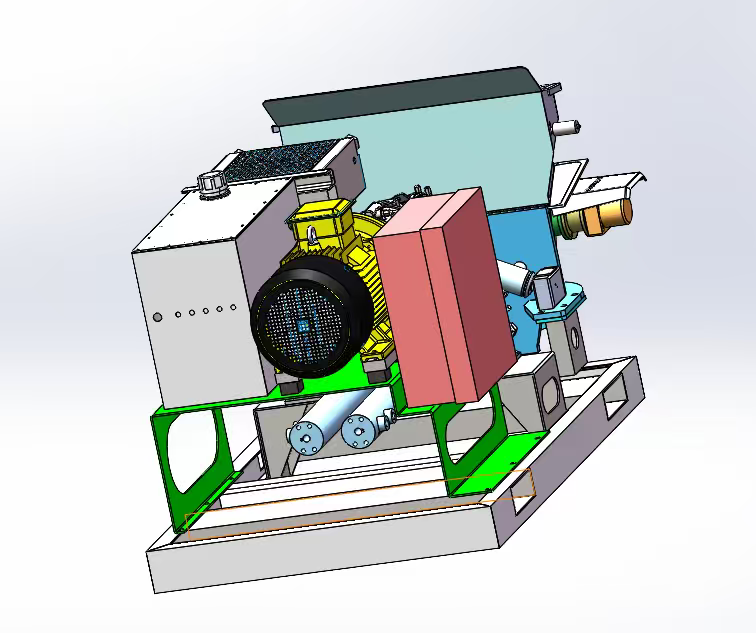

Eco Mini main motor end

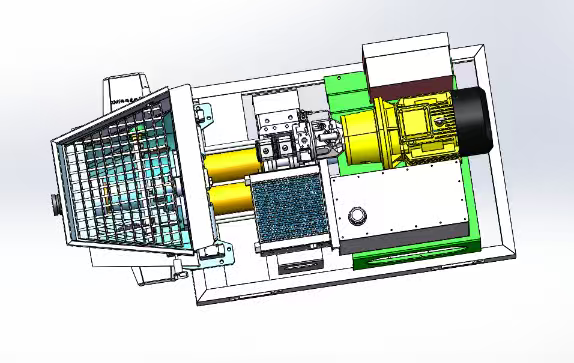

Eco Mini internal layout from above
Eco Mini internal layout, side view
Eco Mini internal layout, hopper side
Eco Mini main motor end
Eco Mini internal layout from above
Swipe for more

In the shed.

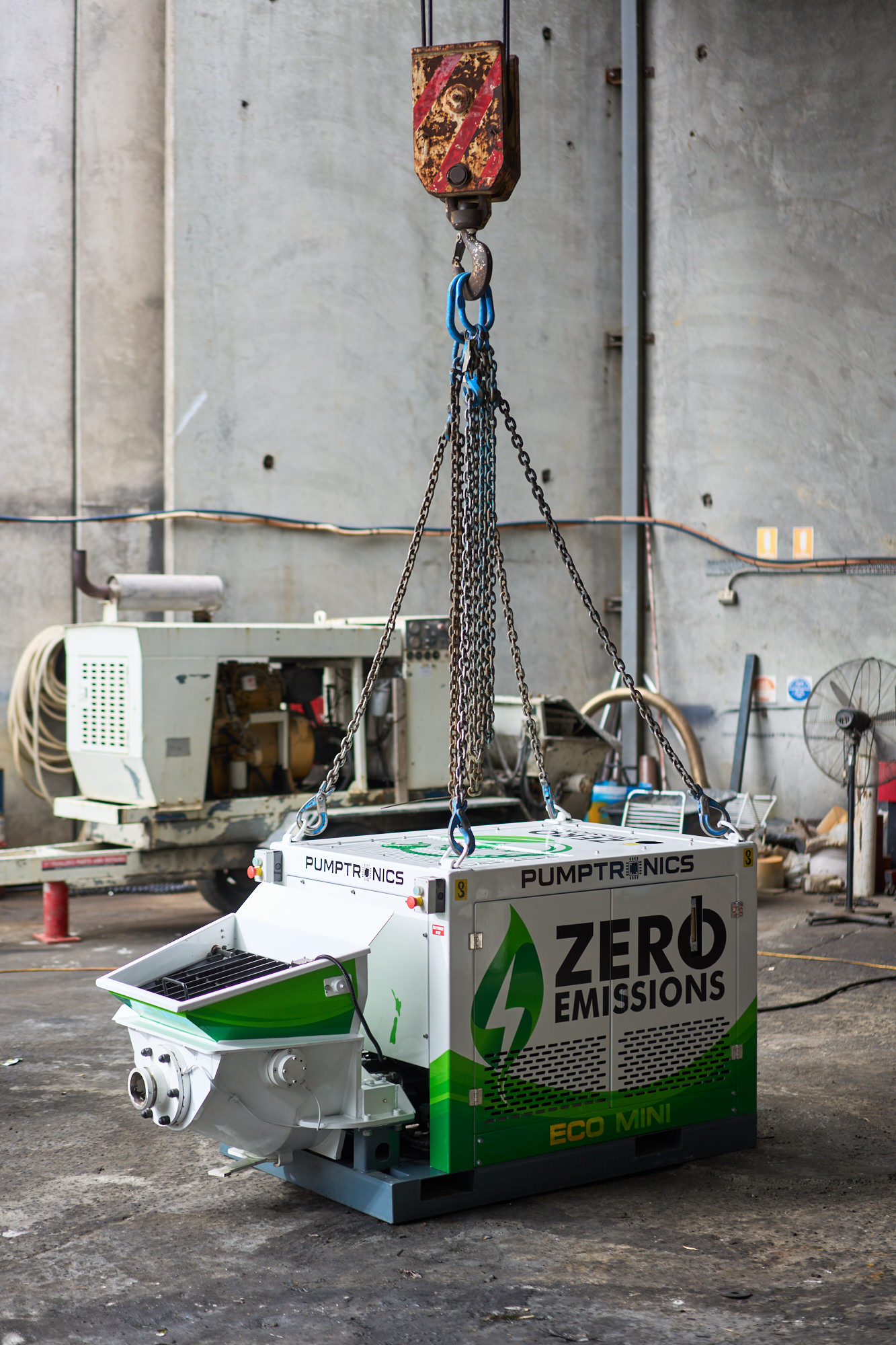

Eco Mini on chains, hopper end

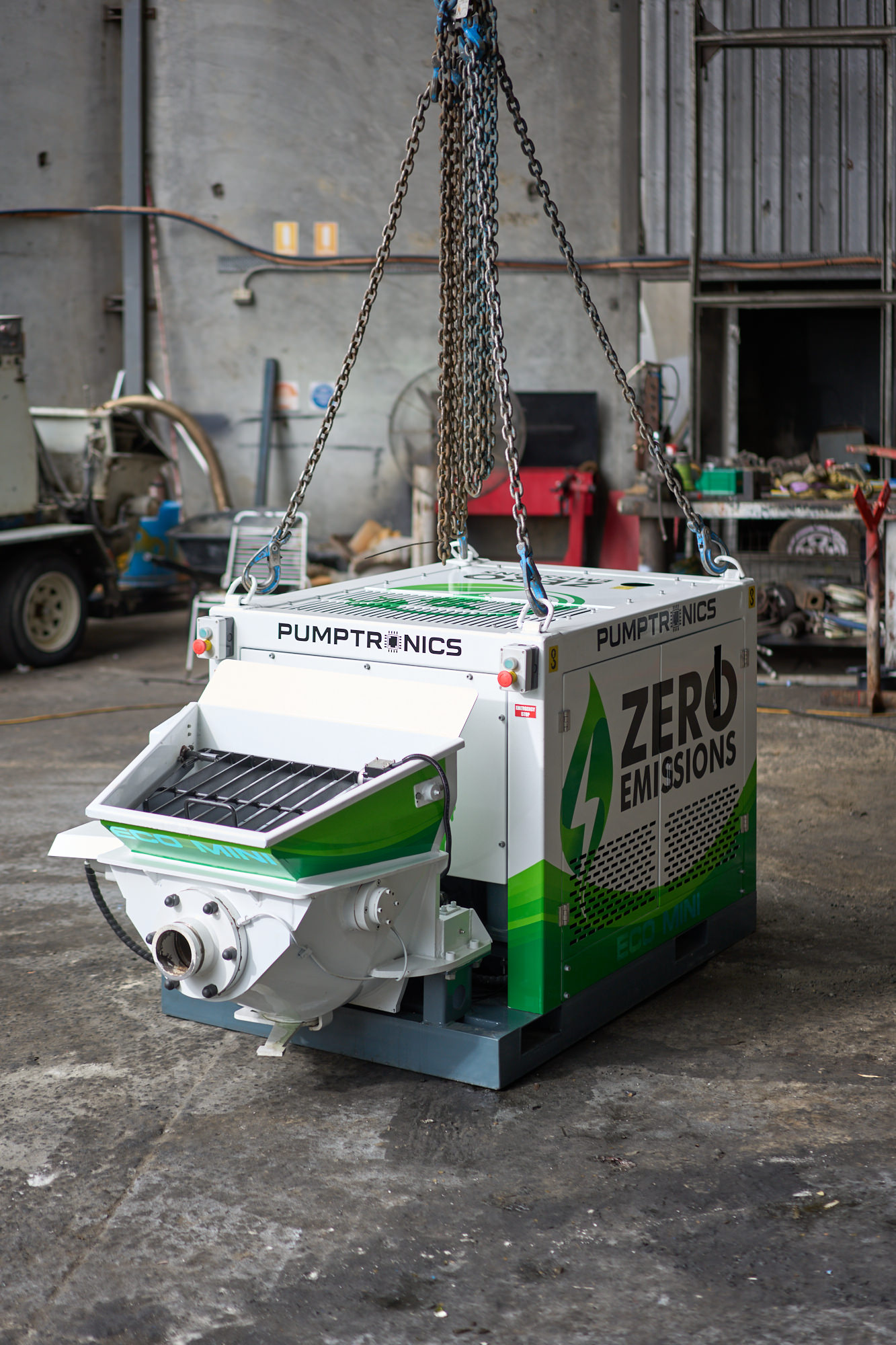

Eco Mini hopper and outlet

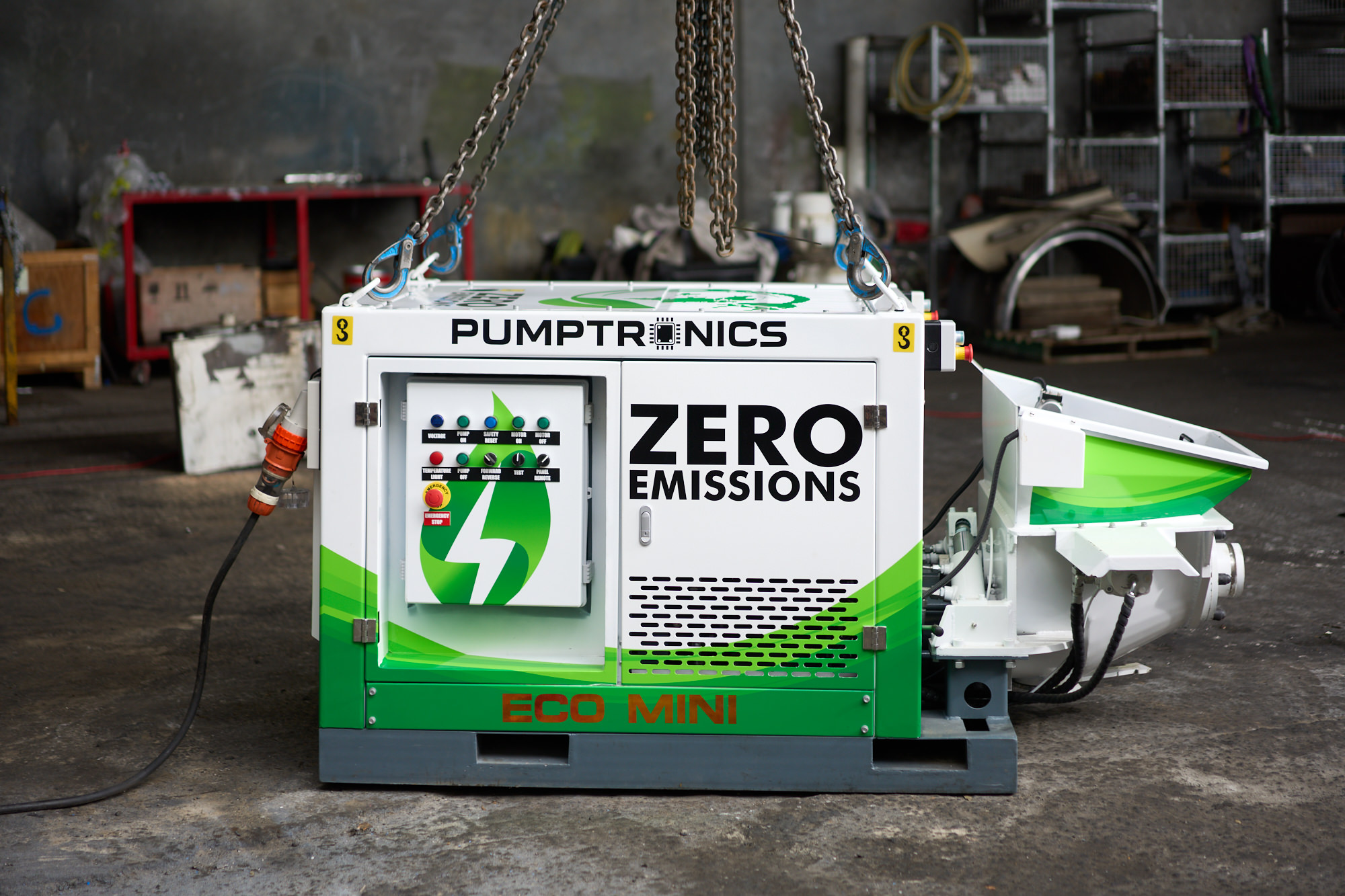

Eco Mini side on in the workshop

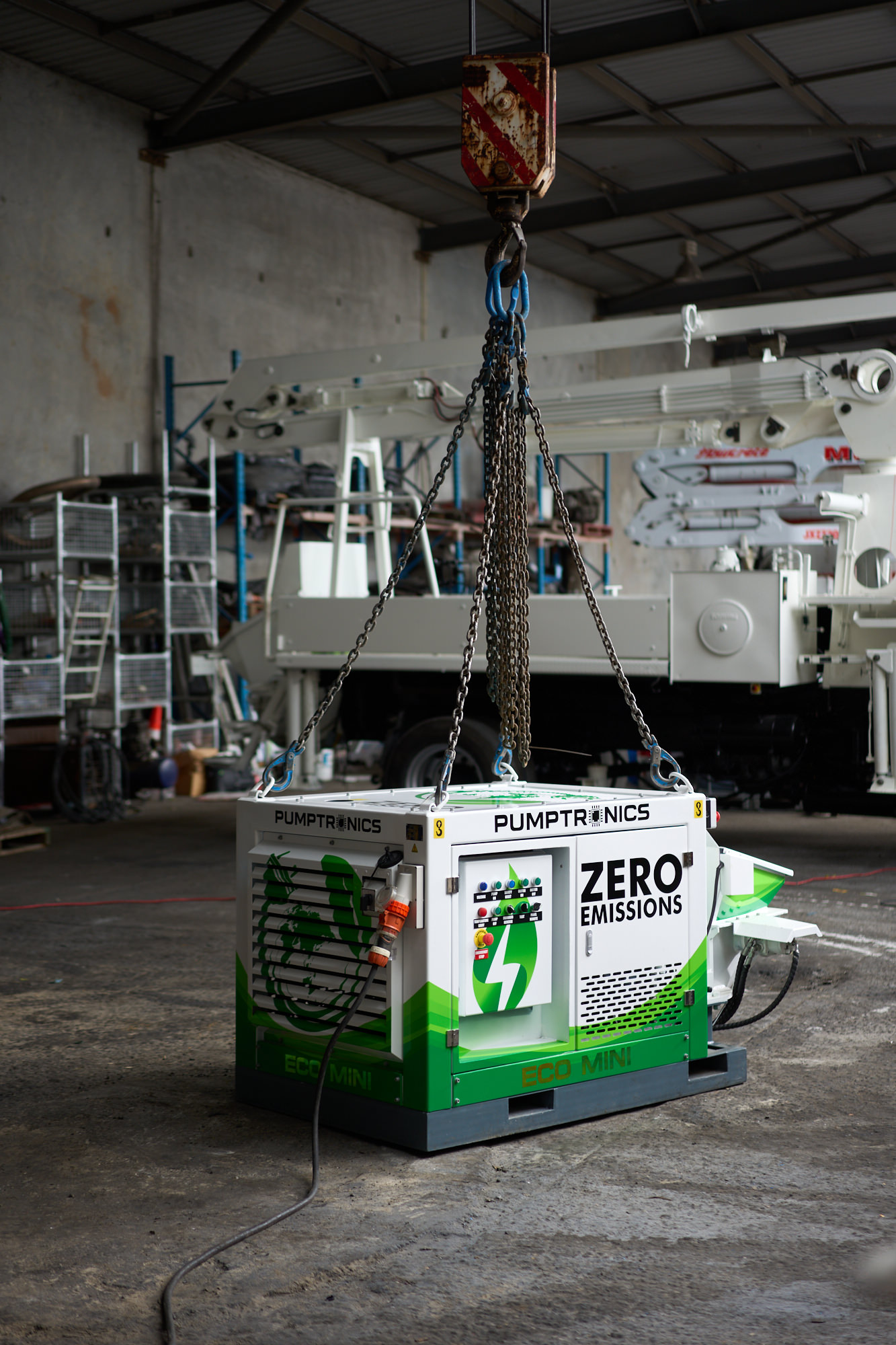

Eco Mini lifted on the crane hook

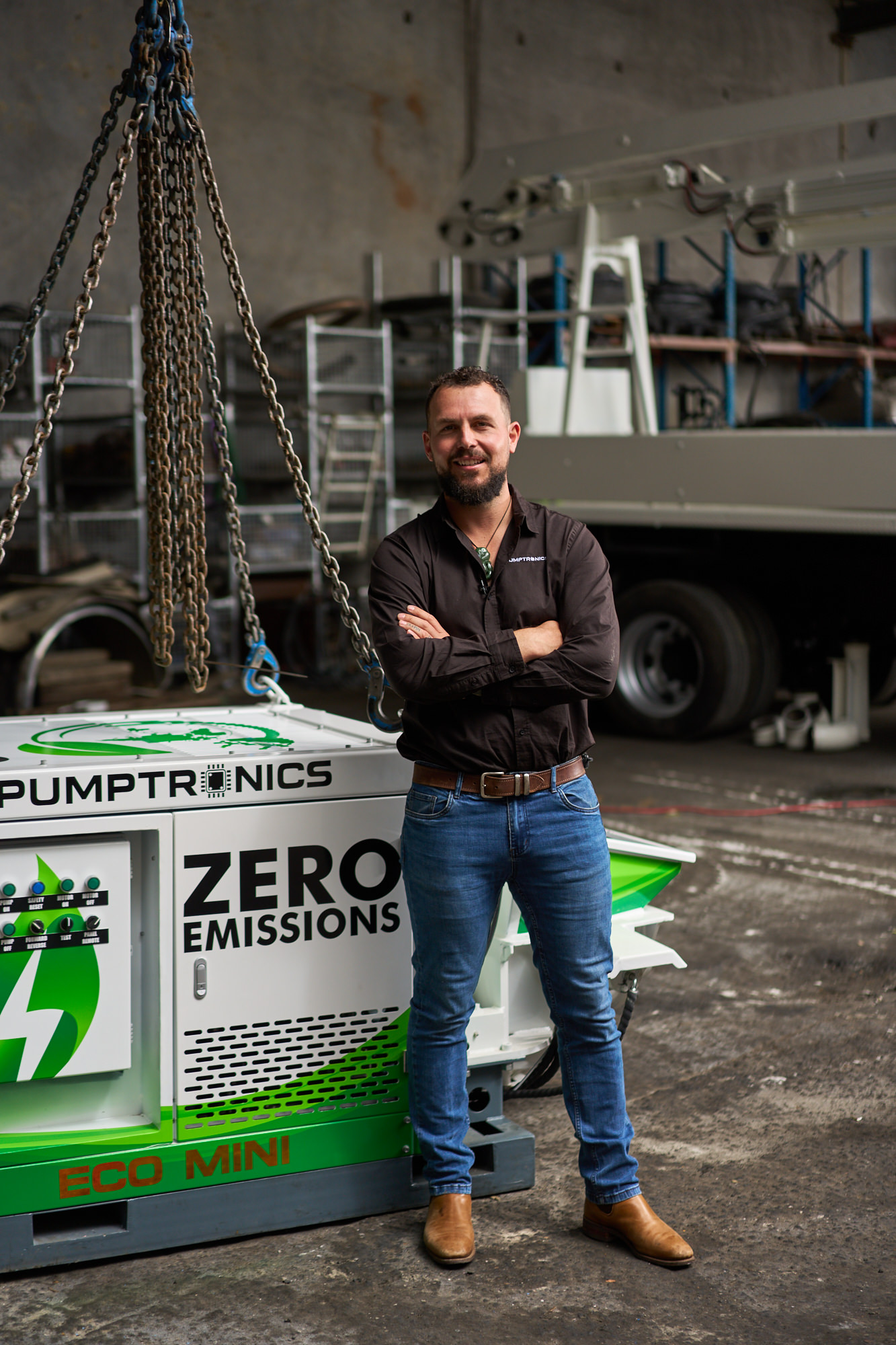

Sam O'Leary standing beside the Eco Mini

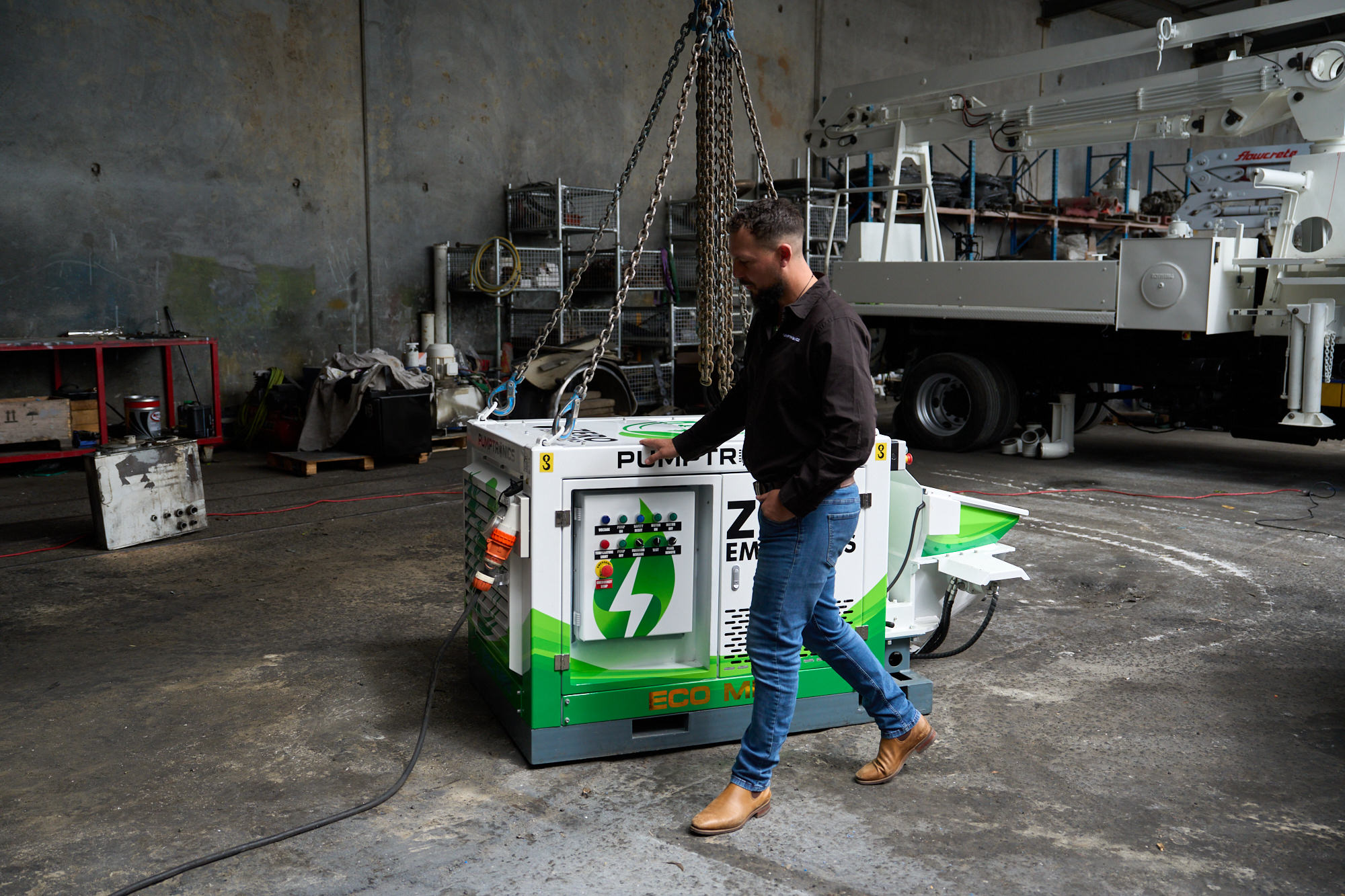

Sam walking past the Eco Mini in the workshop
Eco Mini side on in the workshop
Eco Mini on chains, hopper end
Eco Mini hopper and outlet
Eco Mini lifted on the crane hook
Sam walking past the Eco Mini in the workshop
Sam O'Leary standing beside the Eco Mini
